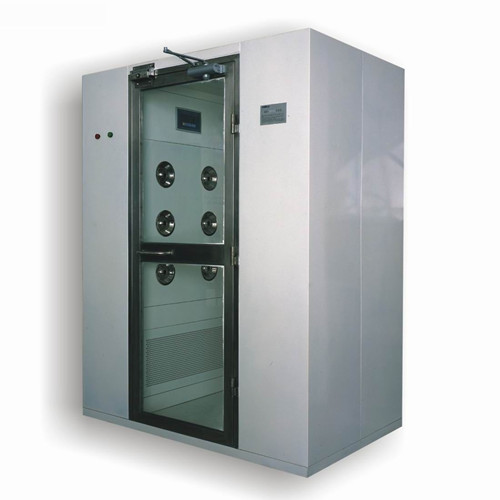

Double Double Shower Room



1. The Introduction of The Double Double Shower Room



Double double blowing shower is a kind of purification equipment, is a special channel for staff in and out of the clean area, can effectively remove the dust on the surface of people and objects, reduce the amount of dust brought into the clean room.At the same time, play the air gate chamber function, to prevent unclean air intrusion.To match the clean air conditioning system, to ensure that the clean room reaches the required cleanliness.



2. The Feature of The Double Double Shower Room



Double pair and double blow performance characteristics:



Double and double air dryer biological clean room, the ideal supporting equipment for industrial cleaning room.The air shower chamber can not only remove the dust attached to the surface of people and articles, reduce the amount of dust brought into the clean air, but also have the gate chamber function, which can prevent the unclean air from invading by the door.To match the clean air conditioning system to ensure that the clean room meets the required cleanliness



The system is automatically controlled, double door electronic interlock, no photosensor, overall cold rolled steel plate, external surface electrostatic injection treatment; stainless steel, beautiful and generous; modular design, assembly and transportation; air time 0-99 seconds adjustable and display time; early high stage filtration system'nozzle wind speed up to 20 M/S, blowing to people / cargo wind speed above 18 M/S; EVA sealing material, high sealing performance.





3. Product Parameter (Specification) of The Double Double Shower Room



The name of the air shower	Double air dryer and double air shower
specifications and models	ZW-2D-1300
External size W * D * L	1400*2000*2050
Air shower size W * D * L	800*1920*1930
Jet Wind speed (m/s)	18-25m/s
Number of nozzles	Only 24
Wind shower cycle	Factory initial setting is 10S: 0-99s (adjustable)
Box main material	Excellent cold rolled plate steel plate, surface electrostatic injection plastic treatment
Door material and quantity	Sandy stainless steel single door, diagonal using automatic cutting er treatment
Door interlock mode	When the air shower, double door lock, usually double door electronic interlock, can only open one of them
source	380V, 50Hz, three-phase
power dissipation	0.75KW
net weight	-250KG
Applicable number	2-4 People



4. The Installation of The Double Double Shower Room



When the air shower is installed at the clean room entrance, there can be no gap between the clean room and the clean room wall board. If there is air leakage, please trim with sealant, and please pay attention to the level of equipment installation, otherwise the door opening and durability will be affected.The equipment is divided into base and no base type, base type can be directly adjusted level, with silicone filling modification.The base-free type should be fixed with an expansion screw and filled with silicone.Connect the power supply to the terminal R, S, T, E in the junction box above the equipment at the voltage shown in the specification.

There are four opening options for door directions:



5. The Intelligent Voice Characteristics of The Double Double Shower Room



■ Adopts automatic control operation, double-door electronic interlock, infrared induction automatic blowing, double-door locking when blowing.

■ Cold board spraying series, using multilayer pickling technology, electrostatic dust-free spraying treatment.

■ Uses all stainless steel manufacturing door, door frame, handle, thickened platform plate, air shower nozzle as the basic configuration.

■ Uses LCD time display from 0 to 99s and displays air shower time.

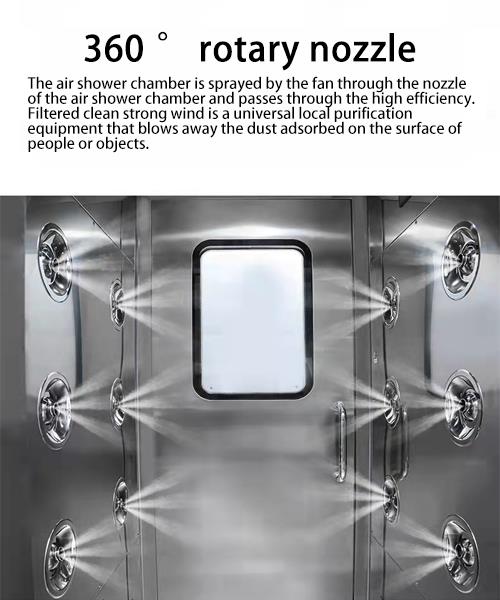

■ Uses Archimedes solenoid design of wind blowing system to reach the super wind speed of 25 m/s ~ 30 m/s, ensuring that the personnel and goods entering the clean room to achieve the perfect effect of thorough dust removal.

■ The uses an advanced mute system that is quieter and has less impact on people working.

■ Uses a unique air refreshing function system to completely eliminate the odor generated in the long-term closed air shower & air shower channel.





6. The Structural Configuration of The Double Double Shower Room



1). Automatic control. The two-person double air shower system adopts PLC intelligent control means. The LED display on the control panel can correctly display the running state of air shower, double door interlocking state, air shower cycle progress and delayed opening state.And equipped with photosensor, one-way channel air shower, from the non-clean area, after closing the infrared induction to the people blow, blow after the entry lock, can only go out of the air shower;

2). The motherboard soft button touch the press time relay, LED display and set blowing time, adjustable range of 10-99s, blowing time can be adjusted according to the difference in the external environment of the air shower;

3). Modular structure, double dryer box adopts modular design scheme;

4). High performance, high sealing, using imported electronic components, stable and reliable operating performance, advanced noise reduction and silent device system and EVA sealing materials, high sealing performance.



7. The Advantages of The Double Double Shower Room















8. The Use of the Double Double Shower Room



1). After opening the stainless steel air door and entering the air shower chamber, the air door immediately automatically closes the outer door, infrared (sound control / human body heat) induction, the air shower automatically starts, and blows for 15 seconds (the factory has been set).

Note: When the air shower blows, two stainless steel doors cannot be opened at the same time. If forced opening, the electronic lock will be damaged. The two doors of the air shower are electronic interlocking control.



2). After the air shower room is blowing, push it out and go into the clean and dust-free room.





9. The Application of The Double Double Shower Room





10. The Purchase Instructions of The Double Double Shower Room



▲ Invoice description

This store price, are not including tax point, invoice need additional tax point, detailed please consult customer service.



▲ Shipping instructions

The goods in our store are large goods, the freight difference in different regions, the goods do not include freight and wooden frame packaging costs.The actual freight according to the product volume, quantity, wooden frame (export wooden box) packaging, receiving address to calculate, before shooting must contact the customer service to calculate the freight!In order not to occur unnecessary misunderstanding, directly take not delivery, need to fill the freight and wooden frame packaging costs to deliver.



▲ Receipt instructions

In order to protect your purchase rights and interests, to provide you with quality service, sign for when logistics personnel package inspection, if found product damage, less, please don't sign for, and timely contact us, we will help you properly quickly solve (such as no inspection sign for, the store will not bear any damage, such as return).



11. The Introduction of The Dong Guan Zhuo Wei Air Purification Technology Co., Ltd.



We always adhere to the enterprise tenet of "survive by quality, seek market by reputation, seek development by technology, and seek benefit by management", adhering to the business philosophy of "creating first-class quality products and building Huaye's image", and constantly integrating product manufacturing and engineering and The professional and group business model integrating design and installation will wholeheartedly provide you with high-efficiency, high-quality, high-rated construction management engineering services, and sincerely create a first-class clean space for you. Wholesale high quality newest durable Double double shower room, ​​choose China Zhuo Wei Air Purification factory, which is one of the most professional Double double shower room manufacturers, suppliers, and manufacturers, made in China brands, our Double double shower room durable, technical Advanced, easy-maintainable, sufficient inventory and low cost, this is the latest classic style, easy-maintainable, and we provide free samples and price lists of products, you are welcome to email us for wholesale customization of related products.



12. The Maintenance of The Double Double Shower Room



1). The double double shower room must be maintained and kept by professionally trained personnel.

2). Small faults shall be handled by the equipment personnel trained by Party A, and large faults shall be repaired by our personnel on-site

3). Check the primary filter every month. If you notice a layer of dust, you need to change the filter

4). The life of the high-efficiency filter is determined by two factors: the number of times the air shower is used and the maintenance of the initial filter. Generally, the service life of the high-efficiency filter is two years. Regularly measure and record the wind speed. When lower than 10 m/s, the high efficiency filter must be replaced

5). When going in and out, do not force the doors on both sides to open at the same time, so as to avoid the damage of thousands of door locks

6). Do not push the glass with your hands when entering or going out, so as not to hurt people after the glass is broken

7). When entering and leaving the door, you must gently pull the door handle, and do not open the door too far, so as not to cause damage to the door, door lock and door closer

8). When the air shower system is working, the door shall not be forced to open.



13. FAQ:



Q1: What is you minimum order quantities?

A :Our MOQ is one set which can meet your sample requirement.



Q2: What is your leading time.

A :It’s based on your quantities and the sizes of the products.Generally it takes us 20 days for one container and 10 days for sample orders.



Q3: What is your payment terms?

A :30% by T/T as deposit, balance will be payed before delivery.



Q4: Do you accept OEM&ODM?

A: Yes



Q5: Why maxi?

1). 2 years warranty time guarantee

2). 24 hours to give you prompt and further information

3). Send invitation and arrange everything for you when you come to China
