Air Purifier Companies



1. The Introduction of The Air Purifier Companies

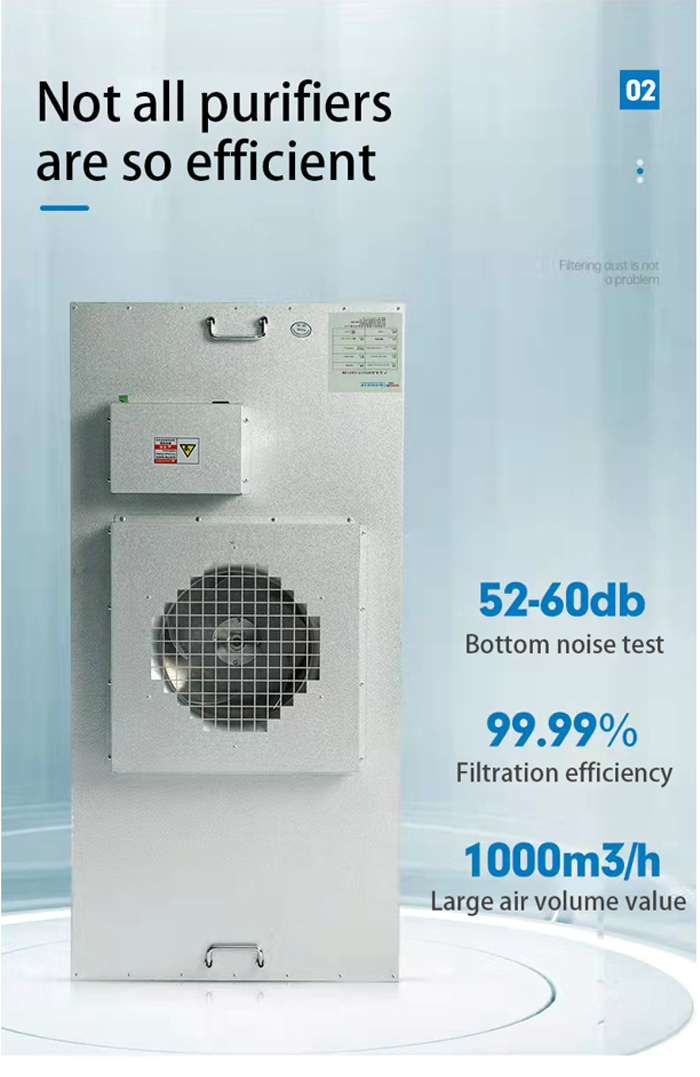

Air Purifier Companies is a self-powered air supply filter device, the full name in English is (Fan Filter Unit), a modular end air supply device with filtering effect. The fan filter unit sucks and combines the air from the top. After HEPA filtration, the filtered clean air is evenly sent out at a speed of about 0.45m/s±20% on the entire air outlet surface.



2. The Feature of The Air Purifier Companies



Most of the FFU fan filter units are made of imported environmentally friendly aluminum-zinc clad sheets, which will never rust, corrosion-resistant, light and sturdy. The box body is designed with golden ratio points. The FFU fan filter unit is beautiful and elegant, and the thickness of the ultra-thin body is only 23cm. In addition, the total thickness of the high-efficiency filter does not exceed 30cm; the weight is only 24kg, which saves space and is convenient for construction, installation and daily maintenance. Low power consumption, low operating cost, and a working life of more than 50,000 hours.



The control of the galvanized frame FFU air purification unit adopts the non-contact induction three-speed speed regulation developed by its company, and the circuits are controlled by electrical switches, which are safe and stable. Flexible and diversified configuration In addition to standard models, non-standard products of different specifications can be produced according to customer needs. Such as: air duct connection flange, filter screen, box material and other changes. Humanized design The unit is equipped with a stainless steel handle, which makes handling and installation more convenient and quick.

3. The Structure of The Air Purifier Companies



Air Purifier Companies is a kind of air self-purification device, which can be installed on indoor ceiling or placed on the bracket, so that the local level can reach class 100. It can also be used for air supply at the end of the clean room. The product is equipped with primary and high-efficiency two-stage filtration device. The fan inhales the air from the top and passes through the first, high-efficiency filter, and the filtered clean air is sent out through the entire air outlet. There are two installation methods: hanging type and floor bracket.

4. Product Parameter (Specification) of The Air Purifier Companies



Model	FFU-1	FFU-2	FFU-3
Dragon bone size	W1200*L1200	W600*L600	W1200*L600
Box size	1175*1175*250	575*575*250	1175*575*250
Filter size	1170*570*69	570*570*69	1170*570*69
Blowing rate	1500m2/h	500m2/h	1000m2/h
Fan	Taiwan fan / domestic fan
Wind Speed	0.35-0.75M/S
Speed Control	Unsegmented air volume regulator can adjust the air volume size arbitrarily
Voltage / current	Single-phase 220V / 50hz
output power	140W-240W
Filter power	Hepa0.3um99.999% in and above
Motor life	About 8 years
Box material	SUS201 stainless steel steel plate / powder paint steel plate / common high quality aluminum plated zinc plate
Highly Active HEPA	H13-U17 (standard standard H13)

5. The Detail of The Air Purifier Companies



6. Air Purifier Companies Notes:



Install:

When transporting, unloading, and hoisting, please ensure that the unit is vertical, and it is strictly forbidden to overturn the unit;

When the machine is out of the factory, Reid has multiple packages, please use a forklift or two people to lift the goods when unloading;

In order to ensure the long-term operation of the unit, the unit should not be installed in places where oily fume, flammable gas, dusty, particularly humid, public passages or foreign objects may block the filter; in order to prevent the unit from being seriously corroded, do not install it in places susceptible to salt-alkali corrosion. occasions, and in the air with a lot of sulfite;

When the unit is installed, the commercial port of the unit needs to leave enough space for air intake to ensure uniform air intake;

The unit is installed on the ceiling keel together with the high-efficiency filter, and it is sealed by its own weight.



Maintenance:

Always observe the operation of the unit, and disconnect the power supply in time if any abnormality is found;

Do not disassemble electrical components at will.



Precautions:

When people walk on the surface of the unit, try to step on the corners of the unit, and it is strictly forbidden to step on the strong air vents of the unit;

Install the air conditioner condensed water to wet the unit











7. The Application of The Air Purifier Companies

8. The Purchase Notes of The Air Purifier Companies



▲Invoice description

The price of this shop does not include tax points, and additional tax points are required for billing. For details, please consult customer service.



▲ Shipping Instructions

The goods in this store are all large-volume goods, and the freight varies greatly in different regions. The goods do not include freight and wooden frame packaging costs. The actual freight is calculated according to the product volume, quantity, wooden frame (export wooden box) packaging, and delivery address. Before shooting, you must contact customer service to calculate the freight! In order to avoid unnecessary misunderstandings, directly photographed and not shipped, need to make up the freight and wooden packaging costs before delivery.



▲Signing instructions

In order to protect your purchase rights and provide you with high-quality services, you need to be the logistics personnel when you sign for the package. Help you to solve the problem properly and quickly (if there is no inspection and receipt, the store will not be responsible for any damage, small pieces and other reasons to return).

9. The Introduction of Dong Guan Shi Zhuo Wei Air Purification Technology Co, Ltd.





Buy low price High Quality Galvanized frame FFU purification unit, look for Zhuo Wei Air Purification factory, Zhuo Wei Air Purification factory is a professional low price Free Sample Galvanized frame FFU purification unit manufacturer and supplier, Support customized wholesale, buy more discounts, we have sufficient stock, cheap price, free samples are available, our Galvanized frame FFU purification unit are of good quality, durable and genuinely made in China.



10. FAQ:



Q1: What is you minimum order quantities?

A :Our MOQ is one set which can meet your sample requirement.



Q2: What is your leading time.

A : It’s based on your quantities and the sizes of the products.Generally it takes us 20 days for one container and 10 days for sample orders.



Q3: What is your payment terms?

A :30% by T/T as deposit, balance will be payed before delivery.



Q4: Do you accept OEM&ODM?

A: Yes



Q5: Why maxi?

1). 2 years warranty time guarantee

2). 24 hours to give you prompt and further information

3). Send invitation and arrange everything for you when you come to China
